Challenge

Category: Reverse Engineering

Difficulty: 🔴 Hard

Task Force Nightfall has intercepted a binary pulled from a compromised monitoring node inside a critical infrastructure operator. On the surface it is exactly what it claims to be - a routine diagnostics utility, the kind deployed silently across thousands of managed endpoints. Clean signature, legitimate-looking output, nothing that trips an alert. But the node it was found on had no business running it. And the traffic logs don’t match what a diagnostics tool should produce.

We’re given a single 24 KB stripped 64-bit ELF named sysprobe. No data files, no source. The flag is in there somewhere.

TL;DR

outer ELF (decoy main, never reached)
  └─ real entry → hidden RWE segment at VMA 0x804000  (no section header)
       └─ nested ELF "loader"
            └─ raw DEFLATE inflate of an embedded blob
                 └─ payload ELF (un-stripped, has symbols!)
                      └─ XOR-deobfuscate 62 bytes of bytecode  (deob[i] = obf[i] ^ (i+0x42))
                           └─ stack-VM `vm_run` interprets it
                                └─ opcode 0x22 = DFT magnitude > threshold check
                                     └─ result bitmap → pack bits MSB-first → FLAG

Five payload layers. Plus three smokescreens: malware-themed runtime output, fake diagnostics strings in .rodata, and a “C2 beacon / persistence” subroutine that does (real but harmless) file writes to make analysts panic.

⚠️ Safety note before you run it

The “malware” theme is partly real. If you run ./sysprobe as root it will write two files:

• /etc/cron.d/sysprobe (a 15-minute cron entry)
• /etc/systemd/system/sysprobe.service (a systemd unit)

Neither references a binary that exists (they both point to /usr/local/bin/sysprobe), but the files are written. Run as an unprivileged user or in a disposable VM/container. If you ran as root, just delete both files, there’s nothing else to clean up. The “C2 beacon” line is only printed; no network call is made.

1. First contact

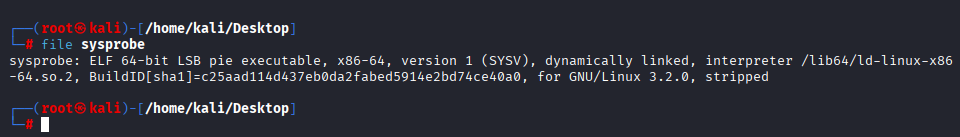

$ file sysprobe
sysprobe: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked,
          interpreter /lib64/ld-linux-x86-64.so.2, ... stripped

PIE, dynamically linked, stripped, 24 KB.

$ ./sysprobe
[sysprobe] beacon active
[vm] persistence written: /etc/systemd/system/sysprobe.service
[vm] persistence written: /etc/cron.d/sysprobe
[vm] C2 beacon -> http://update-monitor.net/checkin

Looks like a malware sample. The four lines are designed to make you think “ransomware / RAT / persistence rootkit” and dive into a strace rather than disassembly. Don’t take the bait, strings reveals the misdirection.

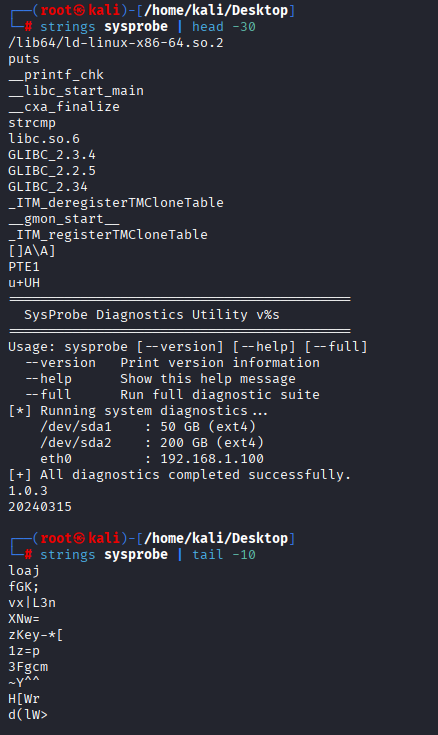

strings finds two disjoint string sets:

$ strings sysprobe | head -30      # the .rodata strings
$ strings sysprobe | tail -10       # the high-entropy garbage at the end

The first block is harmless diagnostics text - Usage:, CPU Information, Memory Information, –version, etc. The second block is high-entropy noise (the compressed payload).

Crucially, the four runtime strings you just saw ([sysprobe] beacon active, [vm] persistence written: ..., [vm] C2 beacon -> ...) are NOT visible in strings. They’re not in .rodata. So where are they?

2. Layer 1 - The decoy main

Section headers say the binary is tiny:

$ objdump -h sysprobe | grep -E '\.text|\.rodata|\.data|\.bss'
 15 .text     0x000002c9  vma 0x10a0
 17 .rodata   0x0000038b  vma 0x2000
 24 .data     0x00000010  vma 0x4000
 25 .bss      0x00000008  vma 0x4010

.text is 0x2c9 bytes, about 700. The function at 0x10a0 (which IDA labels main/start) does exactly what strings suggested: prints the diagnostics, parses --help/--version/--full, exits.

But look at the ELF header:

$ readelf -h sysprobe | grep -i entry
  Entry point address:               0x804a55

0x804a55 - far above the section table’s reach. Compare program headers (what the loader actually maps) to the section headers (what objdump -d shows):

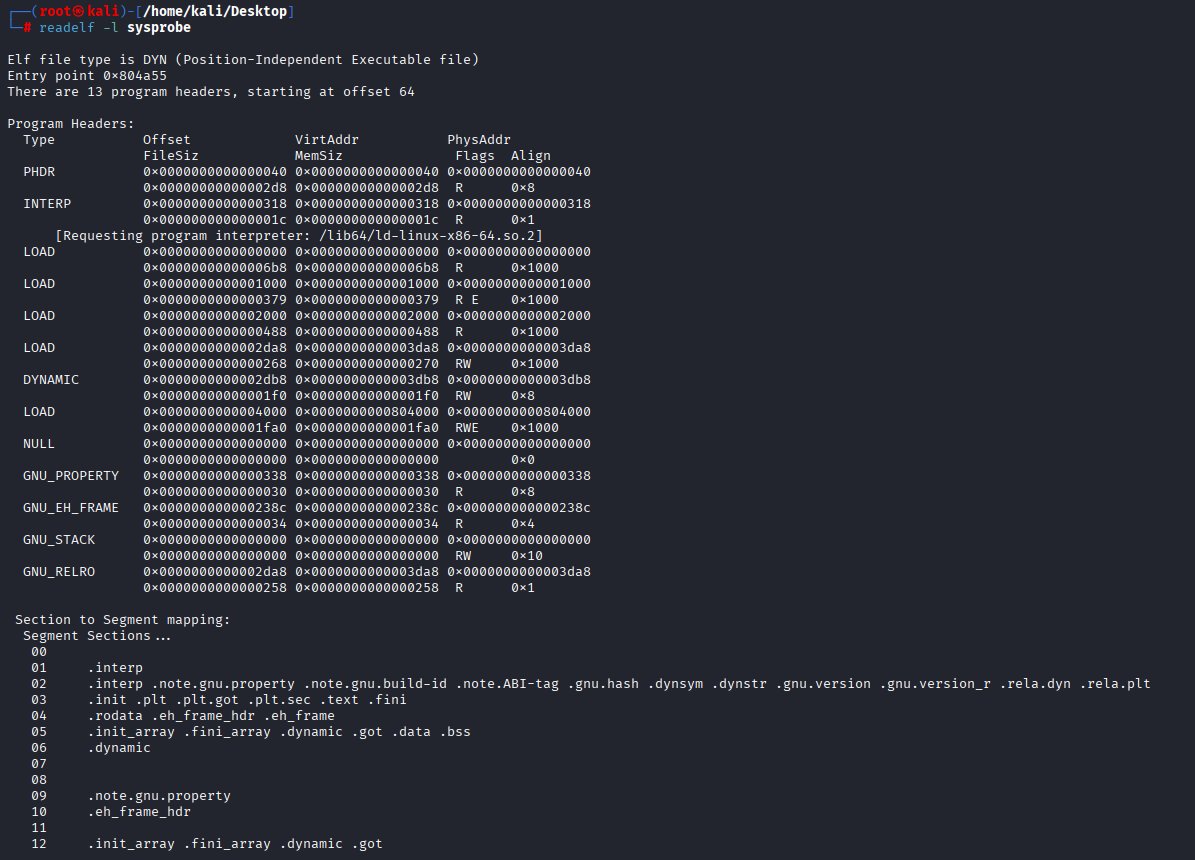

$ readelf -l sysprobe
  ...
  LOAD  0x0000000000004000  0x0000000000804000  0x0000000000804000
        0x0000000000001fa0  0x0000000000001fa0  RWE   0x1000

There it is: an extra LOAD segment, mapped at virtual address 0x804000, file offset 0x4000, size 0x1fa0, permissions R W E, and covered by no section header. The ELF entry point 0x804a55 sits inside it (offset 0xa55 into the segment).

This is a classic packer pattern:

• Section headers are informational only at runtime, the dynamic loader (ld-linux) ignores them and uses program headers.
• Disassembers and objdump love sections.
• Hide your real code in a segment with no section coverage and tools default-blind to it.

The decompiled main at 0x10a0 is unreachable code. The real program lives in the RWE segment.

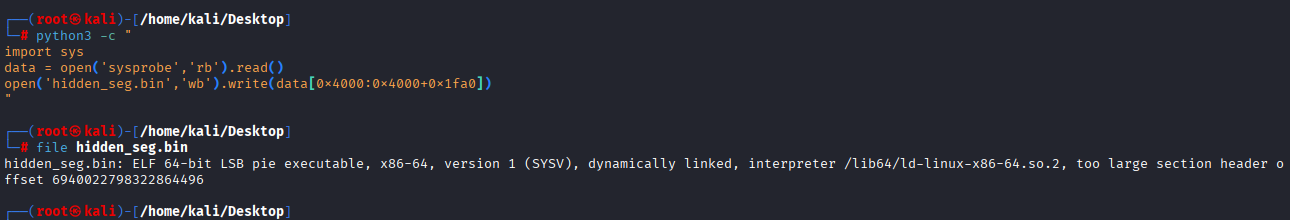

Extract the hidden segment:

$ python3 -c "
import sys
data = open('sysprobe','rb').read()
open('hidden_seg.bin','wb').write(data[0x4000:0x4000+0x1fa0])
"
$ file hidden_seg.bin
hidden_seg.bin: ELF 64-bit LSB pie executable, x86-64, ... too large section header offset ...

The segment starts with the magic bytes 7f 45 4c 46, it’s another ELF. Its section header table is deliberately corrupted (note the too large section header offset warning), but its program headers are intact (they have to be, the kernel reads them).

3. Layer 2 - The hidden loader segment

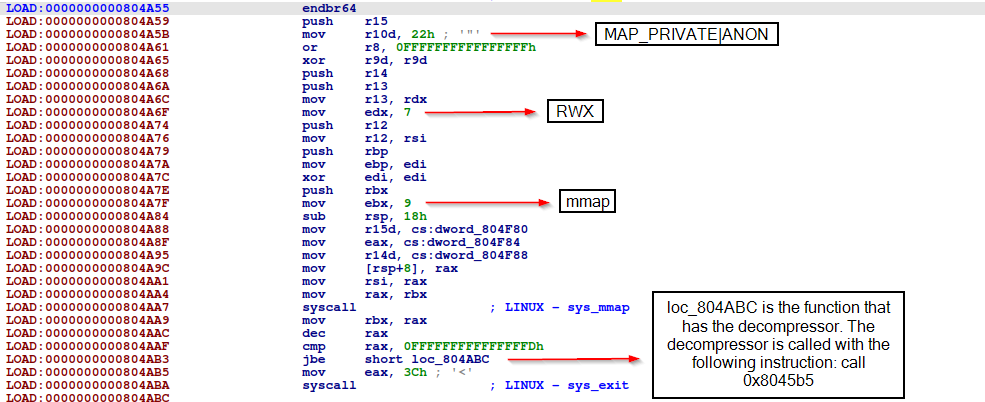

The outer ELF entry 0x804a55 maps to offset 0xa55 in the segment. Disassembling it shows a compact loader:

0x804a55: endbr64
0x804a5b: mov    r10d, 0x22         ; MAP_PRIVATE | MAP_ANONYMOUS
0x804a65: xor    r9d, r9d           ; offset = 0
0x804a6f: mov    edx, 7             ; PROT_READ | PROT_WRITE | PROT_EXEC
0x804a7c: xor    edi, edi           ; addr = NULL
0x804a7f: mov    ebx, 9             ; SYS_mmap
0x804a88: mov    r15d, [rip+0x4f1]  ;
0x804a8f: mov    eax, [rip+0x4ef]   ; size from header
0x804a95: mov    r14d, [rip+0x4ec]  ; entry offset within payload
0x804aa1: mov    rsi, rax
0x804aa7: syscall                    ; mmap RWX buffer
0x804ac7: call   0x8045b5           ; ← decompress into rbx
0x804adb: add    rbx, r14
0x804ae4: call   rbx                ; ← jump into decompressed payload
0x804ae6: mov    eax, 0x3c          ; SYS_exit
0x804aed: syscall

So the loader: (1) mmaps an RWX buffer of the size encoded in a small header, (2) calls 0x8045b5 to inflate the compressed blob into it, (3) computes rbx + r14 (= base + entry_offset) and calls that address.

The decompressor at 0x8045b5 is a hand-rolled raw DEFLATE implementation. You can confirm by spotting the fixed-Huffman code-length signature (8, 9, 7, 8 for literal/length/distance bit-widths) and the length/distance extra-bit tables.

We don’t need to reverse it. Python’s zlib.decompress(..., -15) decompresses raw DEFLATE with no zlib wrapper.

The compressed stream itself starts inside the segment at file-offset 0xf98. We extract and inflate:

import zlib
data = open('hidden_seg.bin','rb').read()
payload = zlib.decompress(data[0xf98:], -15)
open('payload.bin','wb').write(payload)
print(f"decompressed {len(payload)} bytes")

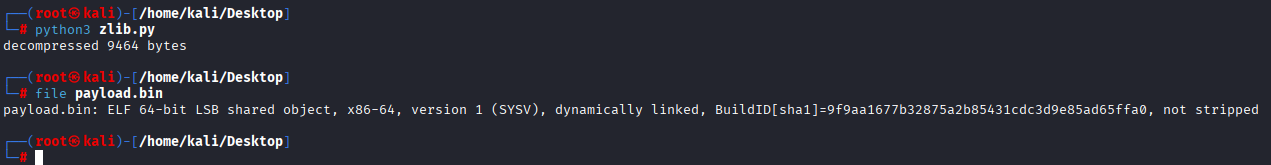

decompressed 9464 bytes

$ file payload.bin
payload.bin: ELF 64-bit LSB shared object, x86-64, ... not stripped

A non-stripped nested ELF. The packer authors gave us symbols. Generous of them.

4. Layer 3 - The payload’s symbol table

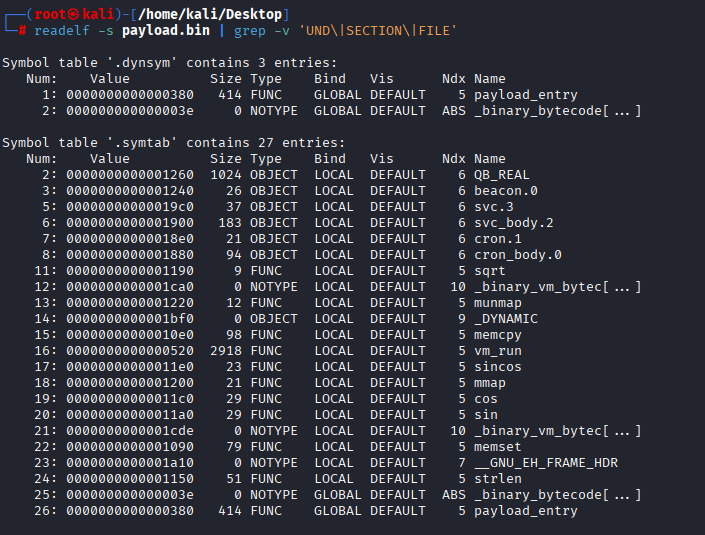

$ readelf -s payload.bin | grep -v 'UND\|SECTION\|FILE'

The useful entries:

payload_entry decompiles cleanly. Its job:

1. mmap a buffer and XOR-deobfuscate the embedded bytecode into it.
2. mmap a 0x2000-byte VM state, seed it (copy QB_REAL into the data area, copy the decoy strings, write a few constants).
3. Call vm_run.
4. munmap everything and _exit.

The XOR loop is the textbook two-instruction shape:

0x3e0: lea  edx, [rax + 0x42]    ; edx = i + 0x42
0x3e3: xor  dl, [r12 + rax]       ; dl ^= obf[i]
0x3e7: mov  [rbp + rax], dl       ; out[i] = dl
0x3eb: add  rax, 1
0x3ef: cmp  rbx, rax
0x3f2: jne  0x3e0

So deob[i] = obf[i] ^ ((i + 0x42) & 0xff). Recover the real bytecode:

data = open('payload.bin','rb').read()
obf  = data[0x1ca0:0x1cde]                         # _binary_vm_bytecode_bin_*
deob = bytes(((i + 0x42) ^ b) & 0xff for i, b in enumerate(obf))
open('bytecode.bin','wb').write(deob)
print(deob.hex())

01 00 00 04 0e 01 0e 03 0e 04 01 02 01 00 0f cc
14 00 20 88 01 00 3b 00 21 ca 01 00 64 00 21 e1
01 00 37 00 21 c9 01 00 2d 00 21 99 01 00 2e 00
21 e0 01 00 2f 00 21 d9 01 01 05 00 22 ff

(For trivia: the obfuscated form CCDAHFFJDOMOOO_… is visible as a strings-able ASCII run in payload.bin but not in the outer sysprobe, because at that level it’s still buried inside the compressed blob.)

5. Layer 4 - The VM

vm_run (0x520, 2918 bytes) is a textbook accumulator-style bytecode interpreter:

• 5 general registers (r0–r4) at +0x00, +0x08, +0x10, +0x18, +0x20
• PC at +0x28, stack pointer at +0x30
• a mode flag at +0x38 (low bit toggles short vs extended encodings)
• bytecode pointer / size at +0x40 / +0x48
• a downward-growing 0x1000-byte stack starting at +0x50
• a data buffer at +0x1050 (the decoy strings + QB_REAL live here)
• two 0x1000-byte arrays at +0x3050 (real) and +0x4050 (imaginary) - DFT scratch
• a result region at +0x5054–+0x5260

Dispatch is a single jump table starting at offset 0x17e0 in the payload (35 entries, opcodes 0x00–0x22), reached via lea rbp,[rip+0x120a]; ...; movsxd rdi,[rbp+rdi*4]; jmp rdi. Opcodes ≥ 0x23 halt (0xff) or are no-ops. Opcodes 0x15–0x1f are explicitly invalid stubs.

; vm_run+0x114 - the dispatch loop
0x634: mov    rax, [rbx+0x28]         ; PC
0x638: cmp    rax, [rbx+0x48]         ; PC vs size
0x63c: jae    0x5d8                    ; halt on overflow
0x646: mov    rsi, [rbx+0x38]         ; mode flags
0x655: and    ecx, 1                   ; ecx = mode & 1 (ext bit)
0x658: cmp    dil, 0x22                ; opcode > 0x22?
0x65c: ja     0x669                    ; invalid → maybe halt
0x65e: movsxd rdi, [rbp + rdi*4]      ; jumptable[opcode]
0x666: jmp    rdi

The mode flag

A few opcodes encode differently depending on the mode bit. For the opcodes that matter here:

The 35-entry table covers a lot more (PUSH/POP, JMP/CALL/RET, ADD/SUB/XOR/AND, ROR/ROL, CMP, MAC, LDBUF/STBUF, SETSUB) - the rest are unused by this program, but presumably exist so writing your own VM bytecode (and so reading the disassembler) takes longer.

Hand-tracing the program

We walk the program ourselves with a small Python disassembler. The key is that variable-length instructions depend on the mode flag, so we have to step through in execution order, a flat linear sweep would mis-decode anything past the first TOGGLE.

#!/usr/bin/env python3
import sys

BC = bytes.fromhex(
    "010000040e010e030e04010201000fcc"
    "1400208801003b0021ca0100640021e1"
    "0100370021c901002d00219901002e00"
    "21e001002f0021d90101050022ff"
)
bc = open(sys.argv[1], "rb").read() if len(sys.argv) > 1 else BC

def show(pc, raw, mn, c=""):
    print(f"pc={pc:3d}  mode={mode}  {raw.hex():<12}  {mn:<26}{('; ' + c) if c else ''}")

pc = mode = r0 = r1 = r2 = 0
while pc < len(bc):
    op, ext = bc[pc], mode & 1
    if op == 0x01:                                   # LOAD rN, imm16 (+xor in ext)
        r, imm = bc[pc+1], bc[pc+2] | (bc[pc+3] << 8)
        if ext:
            imm ^= bc[pc+4] << 8;  ln = 5
        else:
            ln = 4
        show(pc, bc[pc:pc+ln], f"LOAD r{r}, {imm:#06x}")
        if   r == 0: r0 = imm
        elif r == 1: r1 = imm
        elif r == 2: r2 = imm
        pc += ln
    elif op == 0x0e:                                 # SETSUB n
        sub = bc[pc+1]
        note = {1: "print buf[r0]", 3: "decoy persistence writes", 4: "decoy C2 line"}.get(sub, "")
        show(pc, bc[pc:pc+2], f"SETSUB {sub}", note);  pc += 2
    elif op == 0x0f:                                 # TOGGLE
        ln = 2 if ext else 1
        show(pc, bc[pc:pc+ln], "TOGGLE", f"mode flip, PC += r2 (={r2})")
        pc += ln + r2;  mode ^= 1
    elif op == 0x14:                                 # SETMODE imm8
        imm = bc[pc+1];  show(pc, bc[pc:pc+2], f"SETMODE {imm:#04x}", f"mode -> {imm}")
        mode = imm if not ext else (mode & ~0xff) | imm;  pc += 2
    elif op == 0x20:                                 # DFT_INIT imm8
        imm = bc[pc+1];  N = 1 << (imm & 0x7f)
        show(pc, bc[pc:pc+2], f"DFT_INIT {imm:#04x}", f"N = {N}" + (" (load QB_REAL)" if imm & 0x80 else ""))
        pc += 2
    elif op == 0x21:                                 # DFT_TWIDDLE imm8
        imm = bc[pc+1]
        show(pc, bc[pc:pc+2], f"DFT_TWIDDLE {imm:#04x}", f"angle ~ r0(={r0:#06x}) ^ {imm & 0x7f:#04x}")
        pc += 2
    elif op == 0x22:                                 # MAG_CHECK
        show(pc, bc[pc:pc+1], "MAG_CHECK", f"threshold = r1/1000 = {r1/1000:.4f}");  pc += 1
    elif op == 0xff:
        show(pc, bc[pc:pc+1], "HALT");  break
    else:
        show(pc, bc[pc:pc+1], f"<unhandled {op:#04x}>");  break

Run it and the bytecode reduces to:

pc=0  mode=0  01 00 00 04        LOAD  r0,  0x0400          ; offset of "[sysprobe] beacon active" in buf
pc=4  mode=0  0e 01              SETSUB 1                   ; print buf[r0]
pc=6  mode=0  0e 03              SETSUB 3                   ; decoy persistence file writes
pc=8  mode=0  0e 04              SETSUB 4                   ; decoy C2 line
pc=10 mode=0  01 02 01 00        LOAD  r2,  0x0001
pc=14 mode=0  0f                 TOGGLE                     ; mode 0→1, PC += r2 (skip 1 byte)
pc=16 mode=1  14 00              SETMODE 0x00               ; mode → 0
pc=18 mode=0  20 88              DFT_INIT 0x88              ; N = 1 << (0x88 & 0x7f) = 1<<8 = 256
pc=20 mode=0  01 00 3b 00        LOAD  r0, 0x003b
pc=24 mode=0  21 ca              DFT_TWIDDLE 0xca           ;
pc=26 mode=0  01 00 64 00        LOAD  r0, 0x0064
pc=30 mode=0  21 e1              DFT_TWIDDLE 0xe1           ;
pc=32 mode=0  01 00 37 00        LOAD  r0, 0x0037
pc=36 mode=0  21 c9              DFT_TWIDDLE 0xc9           ; six twiddle passes,
pc=38 mode=0  01 00 2d 00        LOAD  r0, 0x002d           ; each parameterised
pc=42 mode=0  21 99              DFT_TWIDDLE 0x99           ; by (r0, imm)
pc=44 mode=0  01 00 2e 00        LOAD  r0, 0x002e           ;
pc=48 mode=0  21 e0              DFT_TWIDDLE 0xe0           ;
pc=50 mode=0  01 00 2f 00        LOAD  r0, 0x002f           ;
pc=54 mode=0  21 d9              DFT_TWIDDLE 0xd9           ;
pc=56 mode=0  01 01 05 00        LOAD  r1, 0x0005           ; threshold input
pc=60 mode=0  22                 MAG_CHECK                  ; ← the flag routine
pc=61 mode=0  ff                 HALT

So the four “malware” lines are pure misdirection. The TOGGLE/SETMODE pair at PC 14–16 is a five-byte no-op (toggle into ext, immediately reset to short), likely there to confuse a static-only analyst. Everything that matters happens in the last 22 bytes: DFT_INIT → six DFT_TWIDDLEs → MAG_CHECK.

6. Layer 5 - DFT magnitude check

The three custom opcodes all touch the two 0x1000-byte arrays at state+0x3050 (real) and state+0x4050 (imag).

DFT_INIT 0x88

0x7ec: ...                         ; imm8 = 0x88
0x803: and eax, 0x7f               ; eax = 8
0x80c: cmp eax, 8
0x80f: ja  0x81a
0x811: mov r12d, 1
0x817: shl r12d, cl                ; r12 = 1 << 8 = 256
0x820: mov [rbx+0x5050], r12d      ; N = 256
       ; ...zero both arrays...
0x88c: cvtsi2sd xmm0, dword[rbx+rax*4+0x1050]   ; reads int32 from buf!
0x895: mulsd    xmm0, [rip+0x114b]               ; * 1/2^30
0x89d: movsd    [rbx+rax*8+0x3050], xmm0          ; real[a] = scaled value

So DFT_INIT imm:

• sets N = 1 << (imm & 0x7f) (clipped to [1, 256])
• zeroes real[] and imag[]
• if the high bit of imm is set, fills real[0..N-1] with (int32)QB_REAL[a] / 2^30

QB_REAL is not 128 doubles, that’s a cvtsi2sd dword, so it’s 256 int32s. Decoding it: six distinct values (-26490176, 0, 26490176, 79264536, 105754712, 132244889), packed densely in the first 208 cells and zero from index 208 onwards. Treat it as an 13×16 grid (the rest is padding); each (int32 / 2^30) is small (~0–0.12), so we start with a tiny finite “image” in the real array.

DFT_TWIDDLE imm

Reads the imm byte, computes an angle from r0 and the imm:

angle = (r0 ^ (imm & 0x7f)) * (1/256) * (1/256)
if imm & 0x80: angle = -angle
(sin_a, cos_a) = sincos(angle)

then runs a strided pass over the arrays applying a complex rotation:

for a in range(1, N, 2):
    re[a], im[a]      = re[a]*cos_a - im[a]*sin_a, re[a]*sin_a + im[a]*cos_a
    re[a+N/2], im[a+N/2] = re[a+N/2]*cos_a - im[a+N/2]*sin_a, ...

(plus more involved butterfly bookkeeping). What it’s physically doing, a single twiddle stage of a custom transform, is less important than what we see in the loop: it’s a sin/cos-based shuffle parameterised by r0 ^ imm. After six passes with the six (r0, imm) pairs from the trace, the (real, imag) arrays hold the transformed spectrum.

MAG_CHECK - the actual flag operation

0x683: mov     rax, [rbx+0x8]            ; rax = r1 = 5
0x694: cvtsi2sd xmm0, rax                 ; xmm0 = (double)r1
0x6a3: divsd   xmm0, [rip+0x135d]         ; xmm0 = r1 / 1000.0 = 0.005   ← THRESHOLD
       ; ... loop ...
0x6ca: movsd  xmm1, [rbx + rax*8 + 0x3048]
0x6d6: movsd  xmm2, [rbx + rax*8 + 0x4048]
0x6e5: mulsd  xmm1, xmm1                  ; xmm1 = re*re
0x6e9: mulsd  xmm2, xmm2                  ; xmm2 = im*im
0x6ed: addsd  xmm1, xmm2                  ; xmm1 = |X|²
0x6f1: comisd xmm1, xmm0
0x6f5: seta   [rbx + rdx + 0x5054]        ; bitmap[i] = (|X|² > threshold)

So for each bin i, write 1 if magnitude² is above 0.005, else 0. The result is a long binary array starting at offset 0x5054 in the VM state.

That bitmap, packed MSB-first, 8 bits per byte, is the flag.

7. Capturing the result

The cleanest way to get the bitmap is dynamic: vm_run munmaps its 0x5260-byte state buffer just before returning, so we catch the munmap(state, 0x5260) syscall on entry, dump the buffer, and detach.

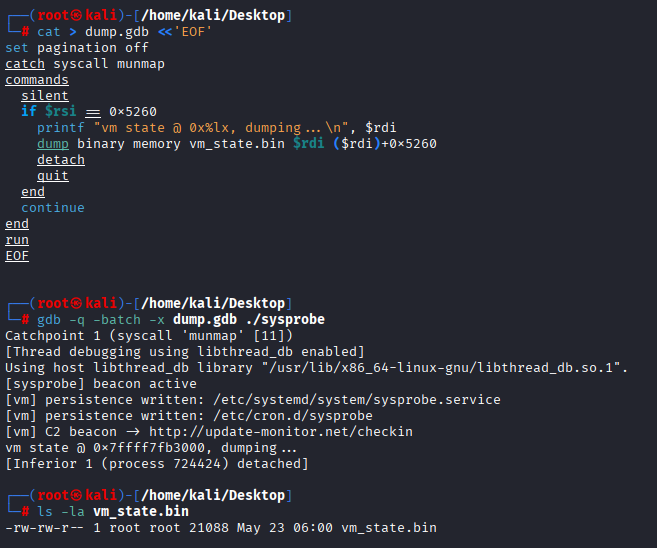

$ cat > dump.gdb <<'EOF'
set pagination off
catch syscall munmap
commands
  silent
  if $rsi == 0x5260
    printf "vm state @ 0x%lx, dumping...\n", $rdi
    dump binary memory vm_state.bin $rdi ($rdi)+0x5260
    detach
    quit
  end
  continue
end
run
EOF
$ gdb -q -batch -x dump.gdb ./sysprobe
[sysprobe] beacon active
[vm] persistence written: /etc/systemd/system/sysprobe.service
[vm] persistence written: /etc/cron.d/sysprobe
[vm] C2 beacon -> http://update-monitor.net/checkin
vm state @ 0x7ffff7faf000, dumping...
$ ls -la vm_state.bin
-rw-r--r-- 1 user user 21088 ...   # 0x5260 = 21088 bytes

⚠️ The catch syscall fires on both entry and exit. The first hit (on entry) has the memory still mapped; the second (on exit) hits Cannot access memory. Detach after the first match. ⚠️ Running this as root will write the persistence files. Run as a normal user, or chmod /etc/cron.d and /etc/systemd/system to be safe.

Now extract the flag. Naively packing bits gives HTB{TH15_TH3_END_0R_WH4T}}, note the extra } at the end. That’s because the magnitude check writes a 1 wherever the spectrum exceeds threshold, including a handful of false-positive bins past the flag’s last bit (the spectrum has DC leakage and harmonics). A safer extraction is to look for HTB{…} with a regex, or to stop at the closing brace:

import re
buf  = open('vm_state.bin','rb').read()
bits = buf[0x5054:0x5260]

out = bytearray()
for i in range(0, len(bits) // 8 * 8, 8):
    byte = 0
    for j in range(8):
        byte = (byte << 1) | (1 if bits[i+j] else 0)
    out.append(byte)

m = re.search(rb'HTB\{[^}]*\}', bytes(out))
print(m.group().decode() if m else "no flag found")

HTB{TH15_TH3_END_0R_WH4T}

Reflection - what made this fun

Five payload layers, three smokescreens:

…layered over the real chain: outer ELF → hidden RWE segment → DEFLATE-packed nested ELF → XOR-deobfuscated bytecode → stack VM → DFT magnitude check → bitmap → flag.

Things to lift from this for similar challenges:

• Entry point can lie outside .text. Always cross-check readelf -h (entry) against readelf -l (program headers), not against the section table. PIE makes the addresses look weird but the segment is exactly where program headers say it is.
• Sections are advisory; segments are gospel. If objdump -d shows almost nothing, it’s because objdump only walks sections. Loaders only walk segments. The gap is your hiding place.
• .bss-sized opcodes are nothing; XOR-stream constants are everything. A 62-byte program with no constants stored inline is enough to drive 4 KB of FFT scratch and produce a 200-bit answer. Don’t measure complexity in bytecode length.
• Trust the symbols you’re given. Whoever wrote this left payload.bin unstripped. Take the gift, read the function names, save your day.
• Misdirection is a feature. The “malware” theme isn’t there to scare you - it’s there to make you strace instead of disassemble, look for a C2 IP instead of an opcode table, file an incident report instead of solving a puzzle.

Appendix A - Opcode table

Reconstructed from the dispatch table at 0x17e0 and the individual handlers. ext = the low bit of [state+0x38]. Opcodes the program here doesn’t use are marked italic; opcodes 0x15–0x1f and anything ≥ 0x23 (except 0xff) are invalid stubs.
